Gigabyte

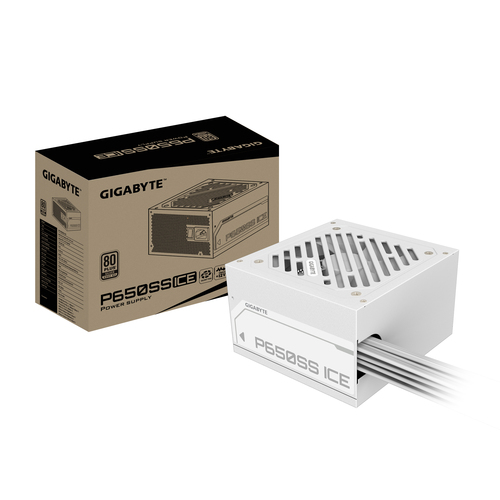

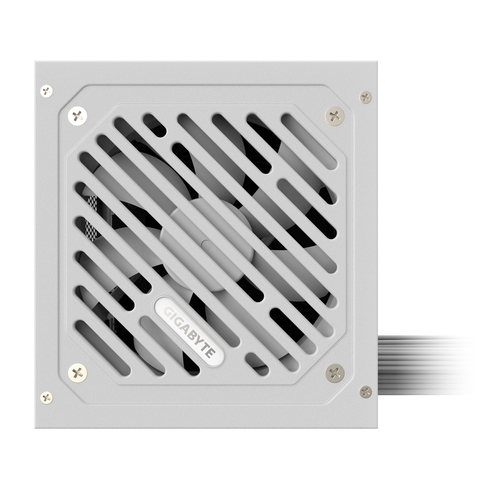

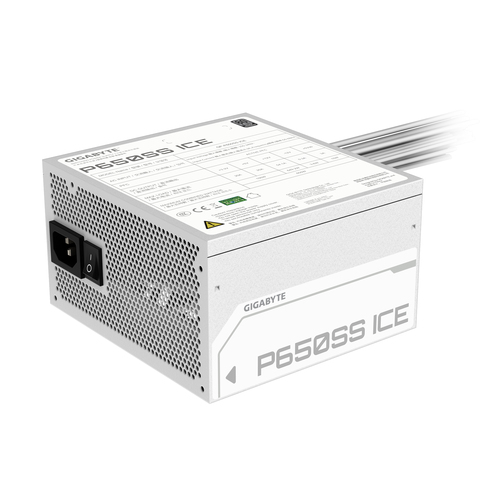

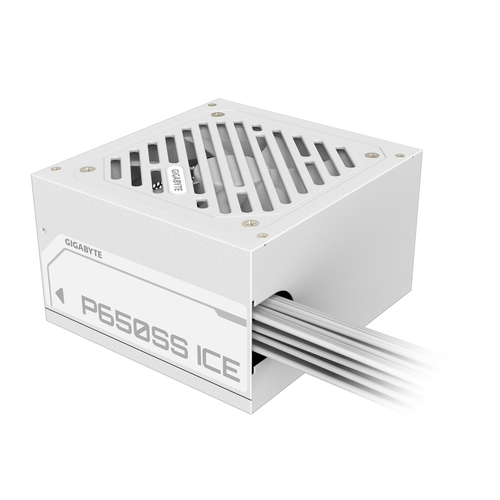

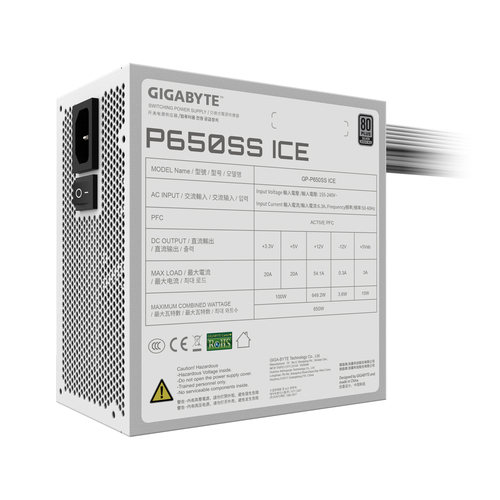

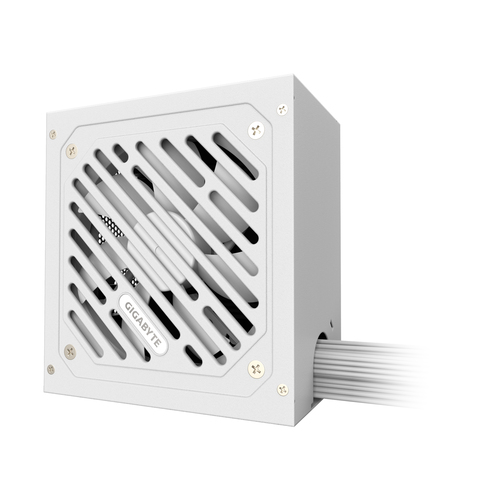

GIGABYTE P650SS ICE Power Supply - PCIe 5.0, 80 PLUS Silver, 120mm Fan, ATX 3.0 compatible, EU Plug
Gigabyte

£63.91
plus shipping and customs
Hardware/ Electronic
Gigabyte
Shipping charges are minimized.
Gigabyte 1Gigabyte 2Gigabyte 3Gigabyte 4Gigabyte 523 visitors
are looking at this item
Delivery to US in: 10-14 workdays (ordered)
Sales Rank: #1263 in Power Supplies
#66978 in Computer
Style: Power Supplies
Product No.: 2101272039
Manufacturer No.: GP-P650SS ICE
Product Safety

Compare with similar items

ITEMS
GIGABYTE P650SS ICE Power Supply - PCIe 5.0, 80 PLUS Silver, 120mm Fan, ATX 3.0 compatible, EU Plug
FSP/Fortron FlexGURU 300W power supply unit 20+4 pin ATX Flex ATX Black
Thermaltake Toughpower i2000W power supply unit 2000 W 24-pin ATX ATX Black
ASUS ROG -THOR-1200P3-WHITE-GAMING power supply unit 1200 W 20+4 pin ATX ATX
Seasonic Prime TX-1600 Noctua Edition power supply unit 1600 W 24-pin ATX ATX Black
  "Gigabyte-GIGABYTE P650SS ICE Power Supply - PCIe 5.0, 80 PLUS Silver, 120mm Fan, ATX 3.0 compatible, EU Plug -Gigabyte-Hardware/Electronic" "Fsp-FSP/Fortron FlexGURU 300W power supply unit 20+4 pin ATX Flex ATX Black-Fsp-Adapter/Cable" "Thermaltake-Thermaltake Toughpower i2000W power supply unit 2000 W 24-pin ATX ATX Black -Thermaltake-Accessories" "Asus-ASUS ROG -THOR-1200P3-WHITE-GAMING power supply unit 1200 W 20+4 pin ATX ATX -Asus-Hardware/Electronic" "Seasonic-Seasonic Prime TX-1600 Noctua Edition power supply unit 1600 W 24-pin ATX ATX Black -Seasonic-Adapter/Cable"

Item number21012720392100209070210179859421018091572101314927
On offer since18.10.202413.01.202110.01.202626.03.202617.12.2024
Price£63.91£56.47£447.40£404.91£445.04
Weight2.23 kg0.00kg5.18kg2.37 kg6.53kg
ManufacturerGigabyteFspThermaltakeAsusSeasonic
CategoryHardware/ElectronicAdapter/CableAccessoriesHardware/ElectronicAdapter/Cable
Total power650 W300 W2000 W1200 W1600 W
AC input voltage155-240 V100 - 240 V220 - 240 V100 - 240 V100 - 240 V
Combined power (+3.3V)100 W70 W120 W125 W125 W
Max output current (+3.3V)20 A12 A22 A30 A25 A
Max output current (+12V)54.1 A25 A166.67 A100 A133.3 A
Max output current (+5V)20 A14 A22 A25 A25 A
Max output current (+5Vsb)3 A3 A3 A3 A3 A
Motherboard power connector20+4 pin ATX 20+4 pin ATX 24-pin ATX 20+4 pin ATX 24-pin ATX
Peripheral (Molex) power connectors (4-pin)2 2 8 6 3
PurposePC Server PC PC PC
Power supply unit (PSU) form factorATX Flex ATX ATX ATX ATX
Mean time between failures (MTBF)100000 h100000 h100000 h120000 h100000 h
Product colourWhite Black Black White Black
ITEMS
GIGABYTE P650SS ICE Power Supply - PCIe 5.0, 80 PLUS Silver, 120mm Fan, ATX 3.0 compatible, EU Plug
FSP/Fortron FlexGURU 300W power supply unit 20+4 pin ATX Flex ATX Black
Thermaltake Toughpower i2000W power supply unit 2000 W 24-pin ATX ATX Black
ASUS ROG -THOR-1200P3-WHITE-GAMING power supply unit 1200 W 20+4 pin ATX ATX
Seasonic Prime TX-1600 Noctua Edition power supply unit 1600 W 24-pin ATX ATX Black
Width140 mm40.5 mm150 mm190 mm210 mm
Depth150 mm150 mm180 mm150 mm150 mm
Height86 mm81.5 mm86 mm86 mm86 mm

Other interesting products in Power Supplies
Nzxt - NZXT C1500 power supply unit 1500 W 24-pin ATX ATX Black
NZXT C1500 power supply unit 1500 ...
Nzxt

£279.79
Cooler Master - Cooler Master X Mighty Platinum 2000W 230V power supply unit 24-pin ATX ATX Black
Cooler Master X Mighty Platinum 20...
Cooler Master

£244.55
Chieftec - Chieftec Vega M PPG-850-C power supply unit 850 W 20+4 pin ATX ATX Black
Chieftec Vega M PPG-850-C power su...
Chieftec

£83.84
Enermax - Power supply Enermax 1200W PlatiGemini 80W Black ATX12VO
Power supply Enermax 1200W PlatiGe...
Enermax

£181.68
Asus - ASUS ROG -THOR-1600T3-GAMING power supply unit 1600 W 20+4 pin ATX ATX Grey
ASUS ROG -THOR-1600T3-GAMING power...
Asus

£673.25
Fsp - 1000W FSP Fortron Hydro TI PRO ATX 3.0 80+ TITANIUM
1000W FSP Fortron Hydro TI PRO ATX...
Fsp

£203.02
Sea Sonic - Seasonic Prime PX power supply unit 2200 W 24-pin ATX ATX Black
Seasonic Prime PX power supply uni...
Sea Sonic

£418.72

Accessories

Technical specifications

Language

Logistics data

Warranty period3 year(s)

Design

Product colourWhite
Cooling typeActive
Fan diameter12 cm
Number of fans1 fan(s)
Fan locationTop
On/off switchYes

Performance

PurposePC
Power supply unit (PSU) form factorATX
80 PLUS certification80 PLUS Silver
ATX version3.0
Bearing technologyFDB
Mean time between failures (MTBF)100000 h

Packaging data

Package width254 mm
Package depth206 mm
Package height117 mm
Package weight2.6 kg
Package typeBox

Ports & interfaces

Motherboard power connector20+4 pin ATX
Peripheral (Molex) power connectors (4-pin)2
Motherboard power cable length60 cm
Number of SATA power connectors5
SATA power cable length120,500 mm
Peripheral (Molex) power cable length120,500 mm
PCI Express power connectors (6+2 pin)2
PCI Express power cable length65 cm
CPU P4 connector (4-pin)1
CPU power connector (4+4 pin)Yes
CPU power cable length60 cm
ATX power connector (20+4 pin)Yes
Floppy disk drive connectorYes
Cabling typeNon-Modular

Weight & dimensions

Width140 mm
Depth150 mm
Height86 mm
Weight2.23 kg

Power

Total power650 W
AC input voltage155-240 V
AC input frequency50/60 Hz
Input current6.3 A
Power factor0.9
Power Factor Correction (PFC) typeActive
Combined power (+3.3V)100 W
Combined power (+12V)649.2 W
Combined power (+5V)100 W
Combined power (-12V)3.6 W
Combined power (+5Vsb)15 W
Max output current (+3.3V)20 A
Max output current (+12V)54.1 A
Max output current (+5V)20 A
Max output current (-12V)0.3 A
Max output current (+5Vsb)3 A
Power Good signal delay range100 - 150 ms
Power protection featuresOver power, Overcharge, Short circuit, Under voltage
